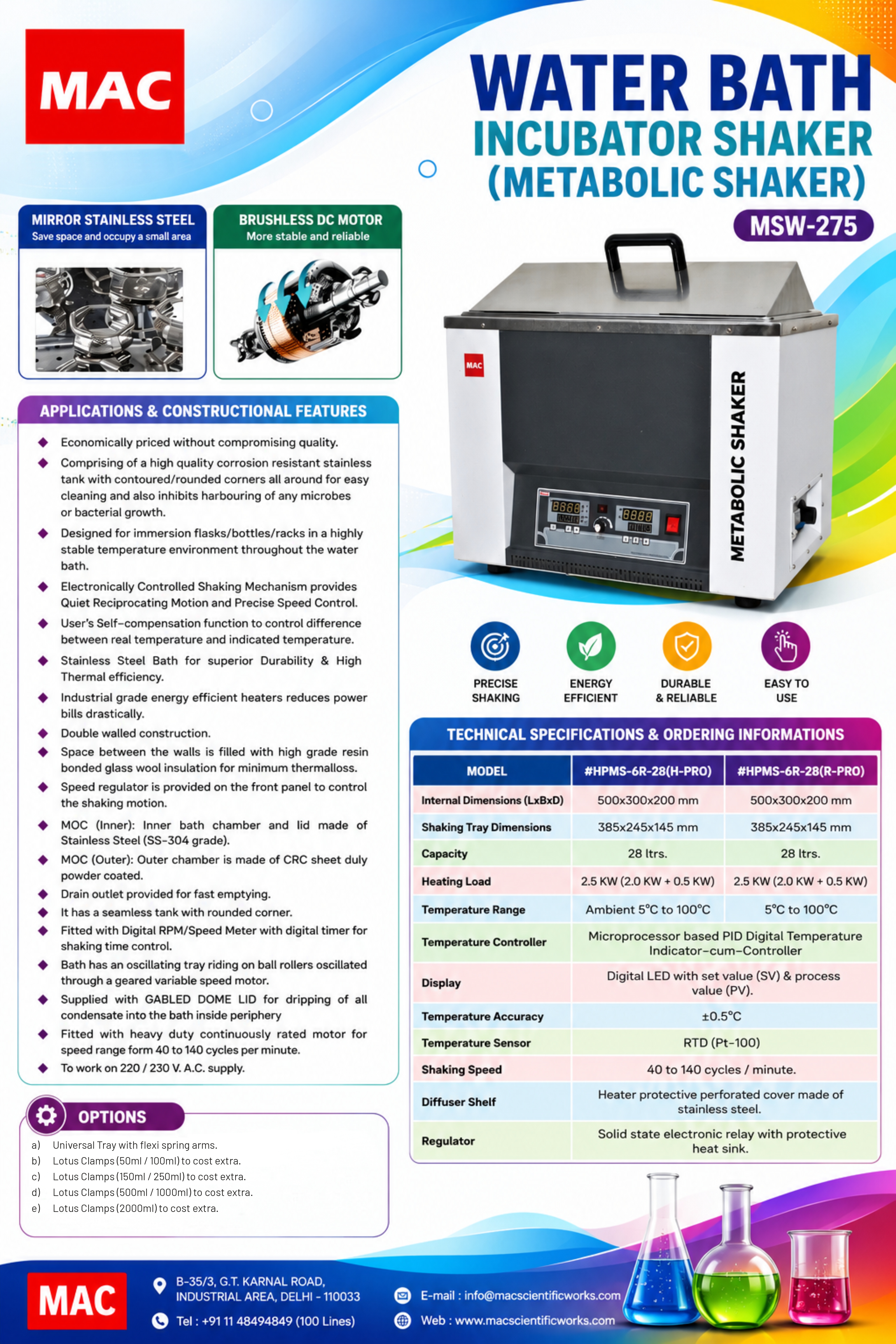

WATER BATH INCUBATOR SHAKER (METABOLIC SHAKER) MSW-275
This is a small description
features
- Economically priced without compromising quality.
- Comprising of a high quality corrosion resistant stainless tank with contoured/rounded corners all around for easy cleaning and also inhibits harbouring of any microbes or bacterial growth.
- Designed for immersion flasks/bottles/racks in a highly stable temperature environment throughout the water bath.
- Electronically Controlled Shaking Mechanism provides Quiet Reciprocating Motion and Precise Speed Control.
- User’s Self-compensation function to control difference between real temperature and indicated temperature.
- Stainless Steel Bath for superior Durability & High Thermal efficiency.
- Industrial grade energy efficient heaters reduces power bills drastically.
- Double walled construction.
- Space between the walls is filled with high grade resin bonded glass wool insulation for minimum thermal loss.
- Speed regulator is provided on the front panel to control the shaking motion.
- MOC (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
- MOC (Outer): Outer chamber is made of Stainless Steel (SS-304 grade).
- Drain outlet provided for fast emptying.
- It has a seamless tank with rounded corner.
- Fitted with Digital RPM/Speed Meter with digital timer for shaking time control.
- Bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor.
- Supplied with GABLED DOME LID for dripping of all condensate into the bath inside periphery.
- Fitted with heavy duty continuously rated motor for speed range form 40 to 140 cycles per minute.
- To work on 220 / 230 V. A.C. supply.
| Technical Specifications & Ordering Informations | ||
| Model | #HPMS-6R-28(H) | #HPMS-6R-28(R) |
|---|---|---|
| Internal Dimensions (LxBxD) | 500x300x200 | 500x300x200 |
| Inner Dimensions (Dia x Depth) | 385x245x145 | 385x245x145 |
| Capacity | 28 ltrs | 28 ltrs |
| Heating Load | 2.5 KW (2.0 KW + 0.5 KW) | 2.5 KW (2.0 KW + 0.5 KW) |
| Temperature Range | Ambient +5°C to 100°C | +5°C to 100°C |
| Temperature Controller | Microprocessor Based PID Digital Temperature Indicator-cum-Controller | |
| Display | Digital LED with set value (SV) process value (PV) | |
| Temperature Accuracy | ±0.5°C | |
| Temperature Sensor | RTD (Pt-100) | |
| Shaking Speed | Heater protective perforated cover made of stainless steel | |
| Diffuser Shelf | Heater protective perforated cover made of stainless Steel | |
| Regulator | Solid state electronic relay with protective heat sink. | |
Options
- Flask Configuration (Select Any One).
- COMBO 1 : 250ml CF x 8 Nos., 100/150ml CF x 3 Nos.
- COMBO 2 : 100/150ml CF x 15 Nos.
- COMBO 3 : 500ml CF x 6 Nos.
- COMBO 4 : 1000ml CF x 4 Nos.
- COMBO 5 : 2000ml CF x 2 Nos.
