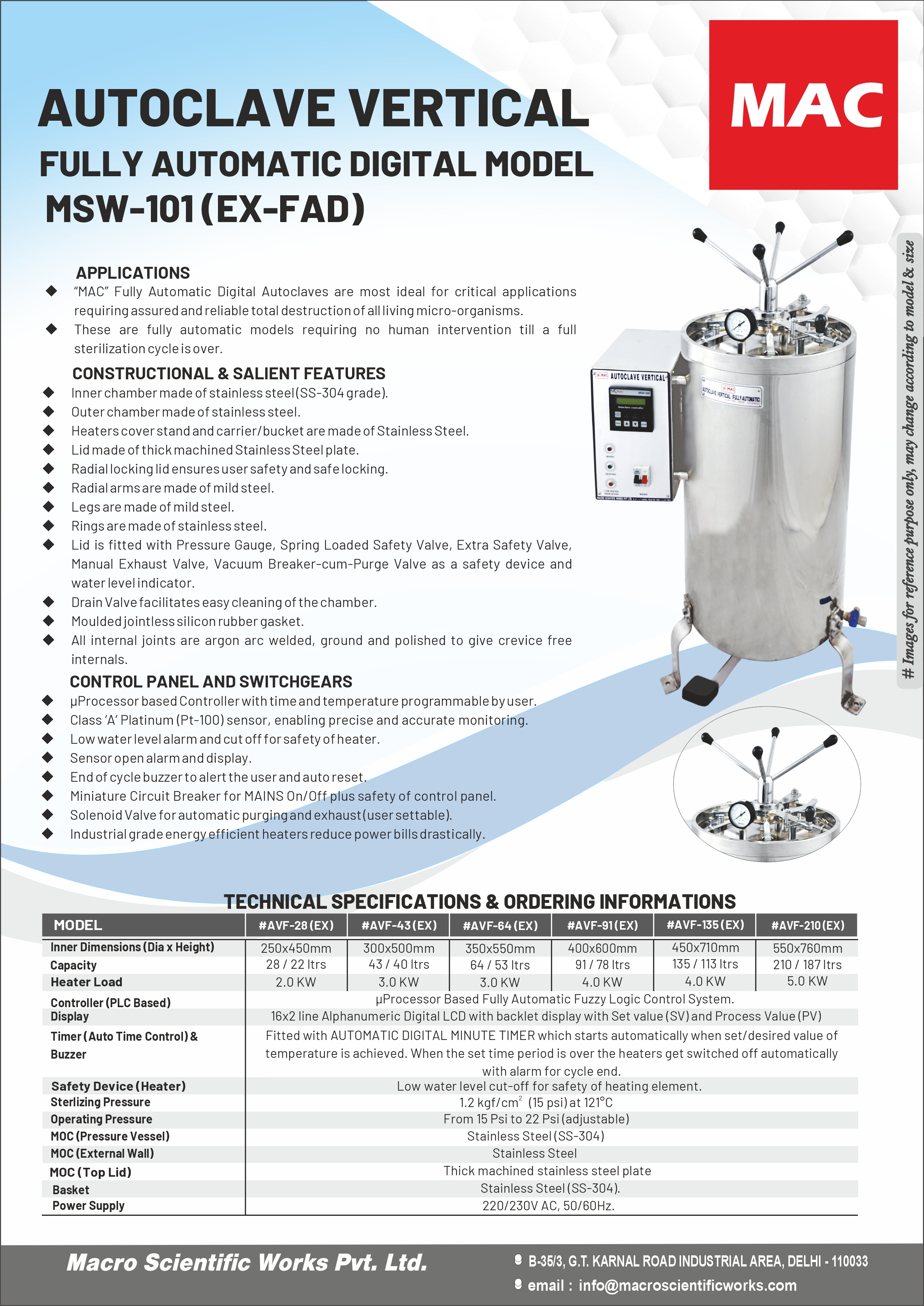

AUTOCLAVE VERTICAL (FULLY AUTOMATIC DIGITAL) “MAC” MSW-101(EX-FAD)
This is a small description
Features
- MAC Fully Automatic Vertical Autoclave are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- These are fully automatic models requiring no human intervention till a full sterilization cycle is over.
- Inner chamber are made of Stainless Steel (SS-304 grade).
- Outer body are made of Stainless Steel.
- Heaters cover stand and carrier/bucket are made of Stainless Steel.
- Lid made of thick machined Stainless Steel plate.
- Radial locking lid ensures user safety and safe locking.
- Radial arms are made of mild steel.
- Legs are made of mild steel.
- Rings are made of Stainless Steel.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, extra Safety Valve, Manual Exhaust Valve, Vacuum Breaker-cum-Purge Valve as a safety device and water level indicator.
- Drain Valve facilitates easy cleaning of the chamber.
- Moulded jointless silicon rubber gasket.
- All internal joints are argon arc welded, ground and polished to give crevice free internals.
- µProcessor based Controller with time and temperature programmable by user.
- Class ‘A’ Platinum (Pt-100) sensor, enabling precise and accurate monitoring.
- Low water level alarm and cut off for safety of heater.
- Sensor open alarm and display.
- End of cycle buzzer to alert the user and auto reset.
- Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
- Fitted with low-water level cut-off device.
- Solenoid Valve for automatic purging and exhaust (user settable).
- Industrial grade energy efficient heaters reduce power bills drastically.
- To work on 220/230Volts, 50/60 Hz AC supply.
| Technical Specifications & Ordering Informations | ||||||
| Model | #AVF-28(EX) | #AVF-43(EX) | #AVF-64(EX) | #AVF-91(EX) | #AVF-135(EX) | #AVF-210(EX) |
|---|---|---|---|---|---|---|
| Inner Dimensions (Dia x Height) | Ø250x450mm | Ø300x500mm | Ø350x550mm | Ø400x600mm | Ø450x710mm | Ø550x760mm |
| Capacity | 28/22 Ltrs. | 43/40 Ltrs. | 64/53 Ltrs. | 91/78 Ltrs. | 135/113 Ltrs. | 210/187 Ltrs. |
| Heater Load | 2.0 KW | 3.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 5.0 KW |
| Controller (PLC Based) | µProcessor Based Fully Automatic Fuzzy Logic Control System | |||||
| Display | 16×2 line Alphanumeric Digital LCD with backlet display with Set Value (SV) and Process Value (PV) | |||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end. | |||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121°C | |||||
| Operating Pressure | From 15psi to 22 psi (Adjustable) | |||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |||||
| MOC (External Wall) | Stainless Steel | |||||
| MOC (Top Lid) | Thick machined Stainless Steel plate | |||||
| Basket | Stainless Steel (SS-304) | |||||
| Power Supply | 220/230V AC, 50/60Hz | |||||
