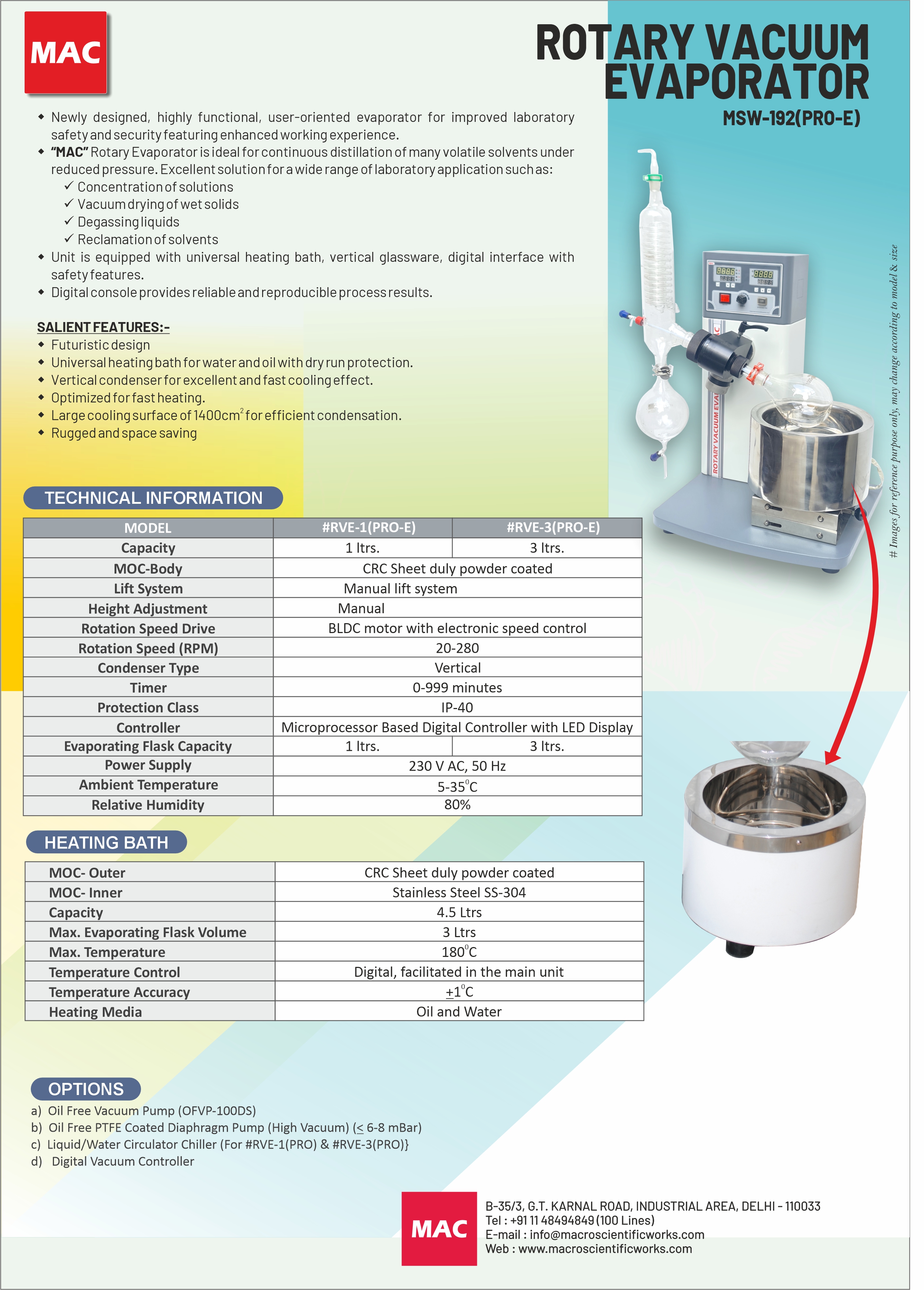

ROTARY VACUUM EVAPORATOR (DIGITAL MODEL WITH MANUAL LIFT) MSW-192(PRO-E)
Efficient PRO series makes evaporation and distillations under vacuum and rotation at controlled high/low temperatures with MICROPROCESSOR DIGITAL CONTROL PANELS. Manual lift system.
Features
- Newly designed, highly functional, user-oriented evaporator for improved laboratory safety and security featuring enhanced working experience.
- “MAC” Rotary Evaporator is ideal for continuous distillation of many volatile solvents under reduced pressure. Excellent solution for a wide range of laboratory application such as:
- 1. Concentration of solutions
- 2. Vacuum drying of wet solids
- 3. Degassing liquids
- 4. Reclamation of solvents
- Unit is equipped with universal heating bath, vertical glassware, digital interface with safety features.
- Digital console provides reliable and reproducible process results.
SALIENT FEATURES
- Futuristic design
- Universal heating bath for water and oil with dry run protection.
- Vertical condenser for excellent and fast cooling effect.
- Optimized for fast heating.
- Large cooling surface of 1400cm2 for efficient condensation.
- Rugged and space saving
| Technical Specifications & Ordering Informations | ||
| Model | #RVE-1(PRO-E) | #RVE-3(PRO-E) |
|---|---|---|
| Capacity | 1 Ltr. | 3 Ltrs. |
| MOC Body | CRC Sheet duly powder coated | |
| Lift System | Manual lift system | |
| Height Adjustment | Manual | |
| Rotation Speed Drive | BLDC motor with electronic speed control | |
| Rotation Speed (RPM) | 20-280 | |
| Stroke | 155 mm | |
| Cooling Surface | 1400 cm² | |
| Condenser Type | Vertical | |
| Timer | 0 - 999 minutes | |
| Protection Class | IP-40 | |
| Controller | Microprocessor Based Digital Controller with LED Display | |
| Evaporating Flask Capacity | 1 Ltr. | 3 Ltrs. |
| Power supply | 230V AC, 50 Hz | |
| Ambient Temperature | 5-35°C | |
| Relative Humidity | 80% | |
| HEATING BATH | . | |
| MOC-Outer | CRC Sheet duly powder coated. | |
| MOC-Inner | Stainless Steel SS-304. | |
| Capacity | 4.5 Ltrs. | |
| Max. Evaporating Flask Volume | 3 Ltrs. | |
| Max. Temp. | 180°C | |
| Temperature Control | Digital, facilitated in the main unit | |
| Temperature Accuracy | ±1°C | |
| Heating Media | Oil and Water | |
Optional
- Oil Free Vacuum Pump (OFVP-100DS)
- Liquid/Water Circulator Chiller {For #RVE-1(PRO) & #RVE-3(PRO)}
- Digital Vacuum Controller
