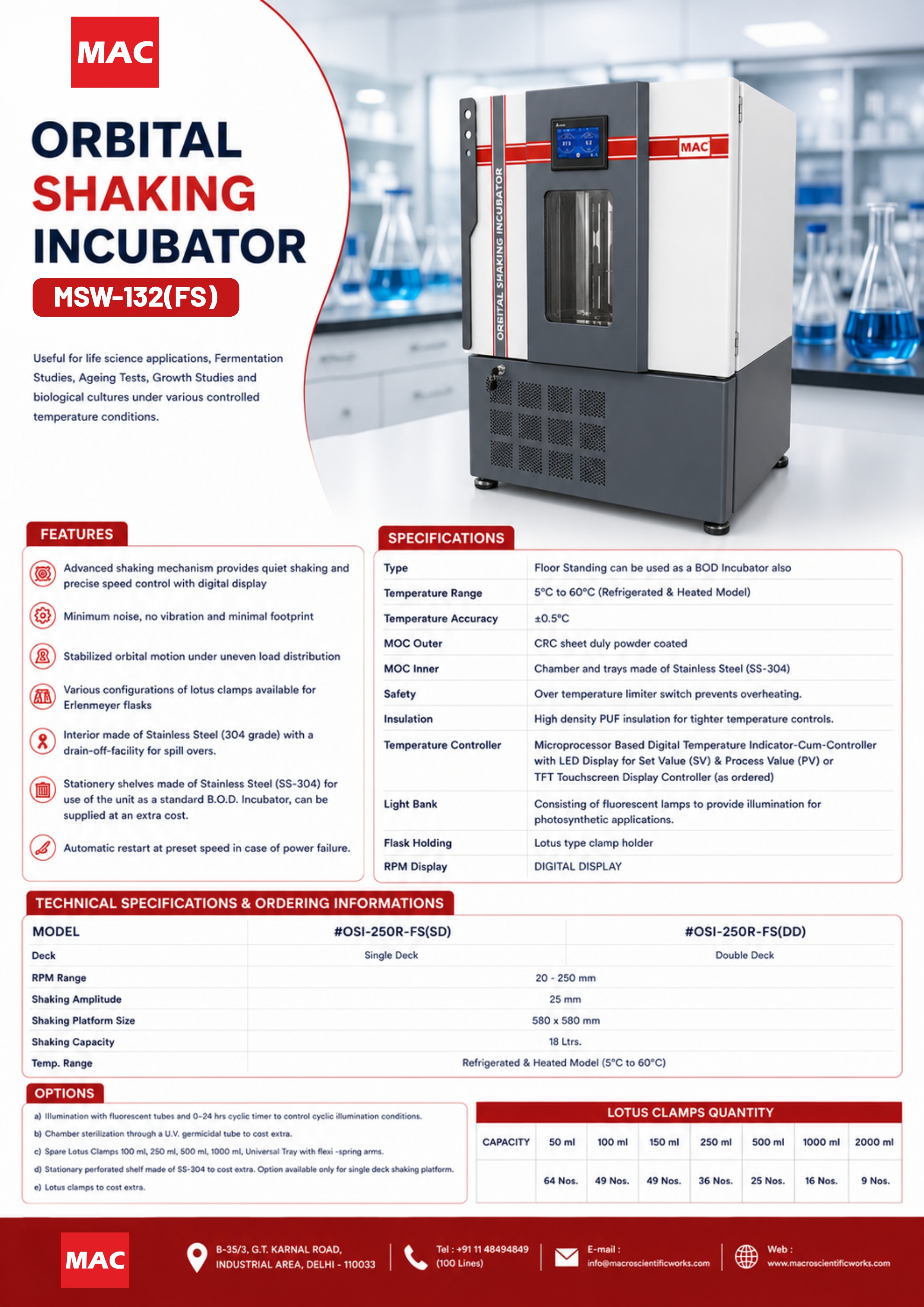

ORBITAL SHAKING INCUBATOR MSW-132

This is a small description

features

  • Useful for life science applications, Fermentation Studies, Ageing Tests, Growth Studies and biological cultures under various controlled temperature conditions.
  • Advanced shaking mechanism provides quiet shaking and precise speed control with digital display
  • Minimum noise, no vibration and minimal footprint
  • Stabilized orbital motion under uneven load distribution
  • Various configurations of lotus clamps available for Erlenmeyer flasks
  • Interior made of Stainless Steel (304 grade) with a drain-off-facility for spill overs.
  • One set of lotus clamps holders with one shaking platform of stainless steel (SS-304) supplied with the unit as a standard accessory
  • Stationery shelves made of Stainless Steel (SS-304) for use of the unit as a standard B.O.D. Incubator, can be supplied at an extra cost.
  • Automatic restart at preset speed in case of power failure.
  • Complete with universal and multipurpose glassware holding expandable spring wire platform for accommodating different shapes and sizes of laboratory bottle, breakers and erlynmeyer flaks etc.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS

  • Type : Self Standing can be used as a BOD Incubator also
  • Temperature Range : 5˚C to 60˚C (Refrigerated) & Ambient 5˚C to 60˚C (Heated Model)
  • Temperature Accuracy : ±0.5˚C
  • MOC Outer : CRC steel sheet duly powder coated
  • MOC Inner : Chamber and trays made of stainless steel (SS-304)
  • Safety : Over temperature limiter switch prevents overheating
  • Insulation : High Density PUF insulation for tighter temperature controls
  • Temperature Controller : Microprocessor Based Digital Temperature Indicator cum Controller with LED Display OR TFT Colour Touch Screen Display Controller (As ordered)
  • Shaking Motion : Permanent Magnet DC Drive for continuous operations
  • Light Bank : Consisting of fluorescent lamps to provide illumination for photosynthetic applications
  • Cyclic Timer : Fitted with cyclic programmable timer.
  • Flask Holding : Lotus type clamp holder (One set supplied with the unit)
  • Flask Configurations Available (Any one set supplied with the unit) : 50ml / 100ml / 150ml / 250ml / 500ml / 1000ml & 2000ml
  • RPM Display : Digital Display
Technical Specifications & Ordering Informations
Model#OSI-250(R)#OSI-250(H)
TypeSelf Standing can be used as a BOD Incubator alsoSelf Standing can be used as a BOD Incubator also
Shaking Capacity18 ltrs.
Temperature ControlMicroprocessor Based Digital Temperature Indicator cum Controller with LED Display OR TFT Colour Touch Screen Display Controller (As ordered)
Temp. RangeRefrigerated Model (5⁰C to 60⁰C)Heated Model (Ambient 5⁰C to 60⁰C)
RPM Range20-250
Shaking Amplitude25mm

Options

  • Illumination with fluorescent tubes and 0-24 hrs cyclic timer to control cyclic illumination conditions {for #OSI-250(H) and #OSI-250 (R) Only}.
  • Chamber sterilization through a U.V. germicidal tube {for #OSI-250(H) and #OSI-250 (R) Only}.
  • Stationary perforated shelf made of SS-304 to cost extra {for #OSI-250(H) and #OSI-250 (R) Only}.
  • Lotus clamps to cost extra.
  • Spare / Extra Platforms if required at extra cost.
