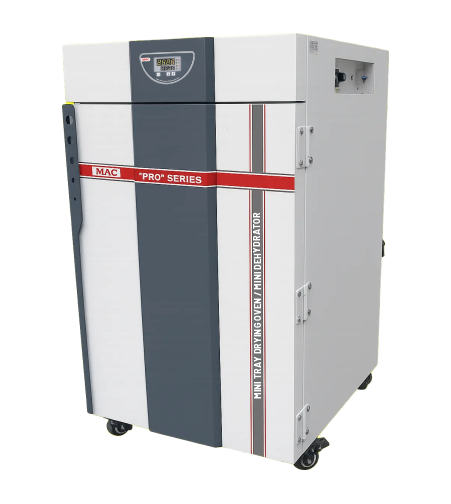

MINI TRAY DRYING OVEN/MINI DEHYDRATOR “MAC” MSW-214

Specially designed for drying of seeds, leafs, fruit and vegetables etc having temperature range from 50 deg. C to 150 deg. C.

APPLICATIONS & CONSTRUCTIONAL FEATURES

  • Suitable for various industrial, laboratory and R&D applications.
  • Forced Air Circulation fan for temperature uniformity.
  • Digital PID Control System enables superior temperature accuracy.
  • Sturdy triple-walled inner chamber made of mild steel sheet.
  • High-Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at the desired temperature.
  • Interior of the oven is painted with high-temperature resistant paint.
  • Exterior of the oven is powder coated.
  • Drying trays with adjustable height are provided on the sides of inner walls.

TECHNICAL SPECIFICATION & ORDERING INFORMATIONS

  • MOC (Internal): Mild Steel Sheet Duly painted
  • MOC (Exterior): Mild Steel Sheet Duly painted.
  • MOC Trays: Made of Aluminium
  • Heater: Tubular Air Heaters
  • Temperature Range: Ambient 50˚C to 150˚C
  • Temperature Accuracy: ±3˚C
  • Temperature Sensor: Fe-K Thermocouple
  • Temperature Controller: Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED OR LCD Display OR TFT Touch Screen Display Controller (Option)
  • Circulation: Heavy Forced Air Circulation by Strong & Reliable axial flow fans for cross flow circulation
  • Insulation: High-Grade Mineral Wool
  • Power Supply: 220/230 or 400/430V, 3 Phase A.C. Supply
Technical Specifications & Ordering Informations
MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)Tray Capacity / Supplied
#MTDO-95(LED)LED455x455x45595 ltrs.3
#MTDO-125(LED)LED455x455x605125 ltrs.4
#MTDO-224(LED)LED605x605x605224 ltrs.6
#MTDO-252(LED)LED605x455x910252 ltrs.9
#MTDO-336(LED)LED605x605x910336 ltrs.9
MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)Tray Capacity / Supplied
#MTDO-95(LCD)LCD455x455x45595 ltrs.3
#MTDO-125(LCD)LCD455x455x605125 ltrs.4
#MTDO-224(LCD)LCD605x605x605224 ltrs.6
#MTDO-252(LCD)LCD605x455x910252 ltrs.9
#MTDO-336(LCD)LCD605x605x910336 ltrs.9
TFT TOUCH SCREEN DISPLAY CONTROLLER
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)Tray Capacity / Supplied
#MTDO-95(TFT)TFT455x455x45595 ltrs.3
#MTDO-125(TFT)TFT455x455x605125 ltrs.4
#MTDO-224(TFT)TFT605x605x605224 ltrs.6
#MTDO-252(TFT)TFT605x455x910252 ltrs.9
#MTDO-336(TFT)TFT605x605x910336 ltrs.9
