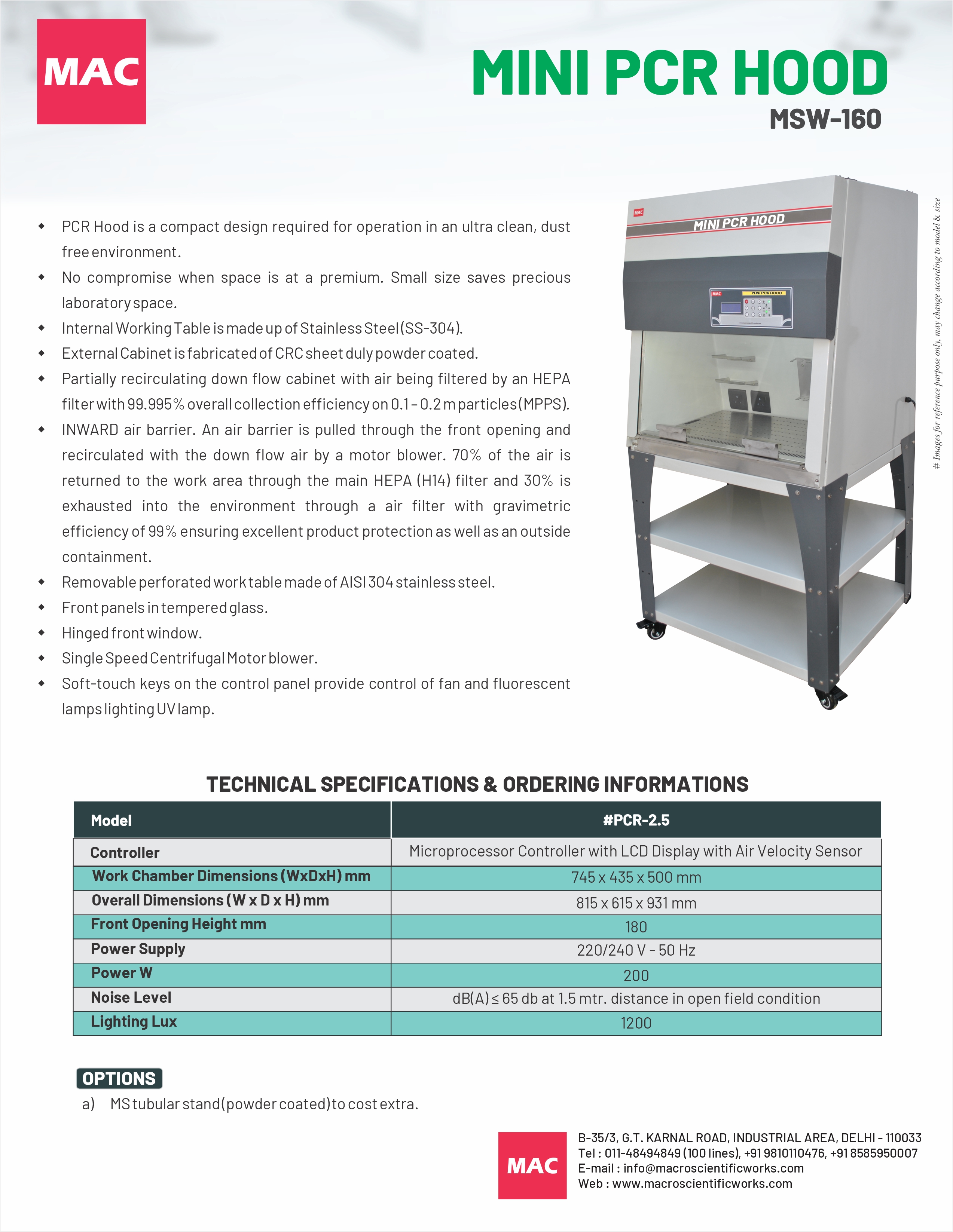

MINI PCR HOOD “MAC” MSW-160
Specially designed for containment of DNA carry over and neutralization prevents cross contamination down from previous amplified DNA fragments.
Features
- PCR Hood is a compact design required for operation in an ultra clean, dust free environment.
- No compromise when space is at a premium. Small size saves precious laboratory space.
- Internal Working Table is made up of Stainless Steel (SS-304).
- External Cabinet is fabricated of CRC sheet duly powder coated.
- Partially recirculating downflow cabinet with air being filtered by an HEPA filter with 99.995% overall collection efficiency on 0.1 – 0.2 m particles (MPPS).
- INWARD air barrier. An air barrier is pulled through the front opening and recirculated with the downflow air by a motor blower. 70% of the air is returned to the work area through the main HEPA (H14) filter and 30% is exhausted into the environment through a air filter with gravimetric efficiency of 99% ensuring excellent product protection as well as an outside containment.
- Removable perforated work table made of AISI 304 stainless steel
- Front panels in tempered glass
- Hinged front window
- Single Speed Centrifugal Motor blower
- Soft-touch keys on the control panel provide control of fan and fluorescent lamps lighting UV lamp.
| Technical Specifications & Ordering Informations | |
| Model | #PCR-2.5 |
|---|---|
| Work Chamber Dimensions (W x D x H) mm | 745 x 435 x 500 mm |
| Overall Dimensions (W x D x H) mm | 815 x 615 x 931 mm |
| Front Opening Height (mm) | 180 |
| Power Supply | 220/240 V - 50 Hz |
| Power W | 200 |
| Noise Level | dB(A) ≤ 65 db at 1.5 mtr. distance in open field condition |
| Lighting Lux | 1200 |
| Tubular Stand (option) | MS tubular stand duly powder coated (option) |
Options
- MS tubular stand (powder coated) to cost extra.
- Microprocessor based digital controller with LCD display with air velocity sensor.
- TFT Touch Screen Display Controller with air velocity sensor.
