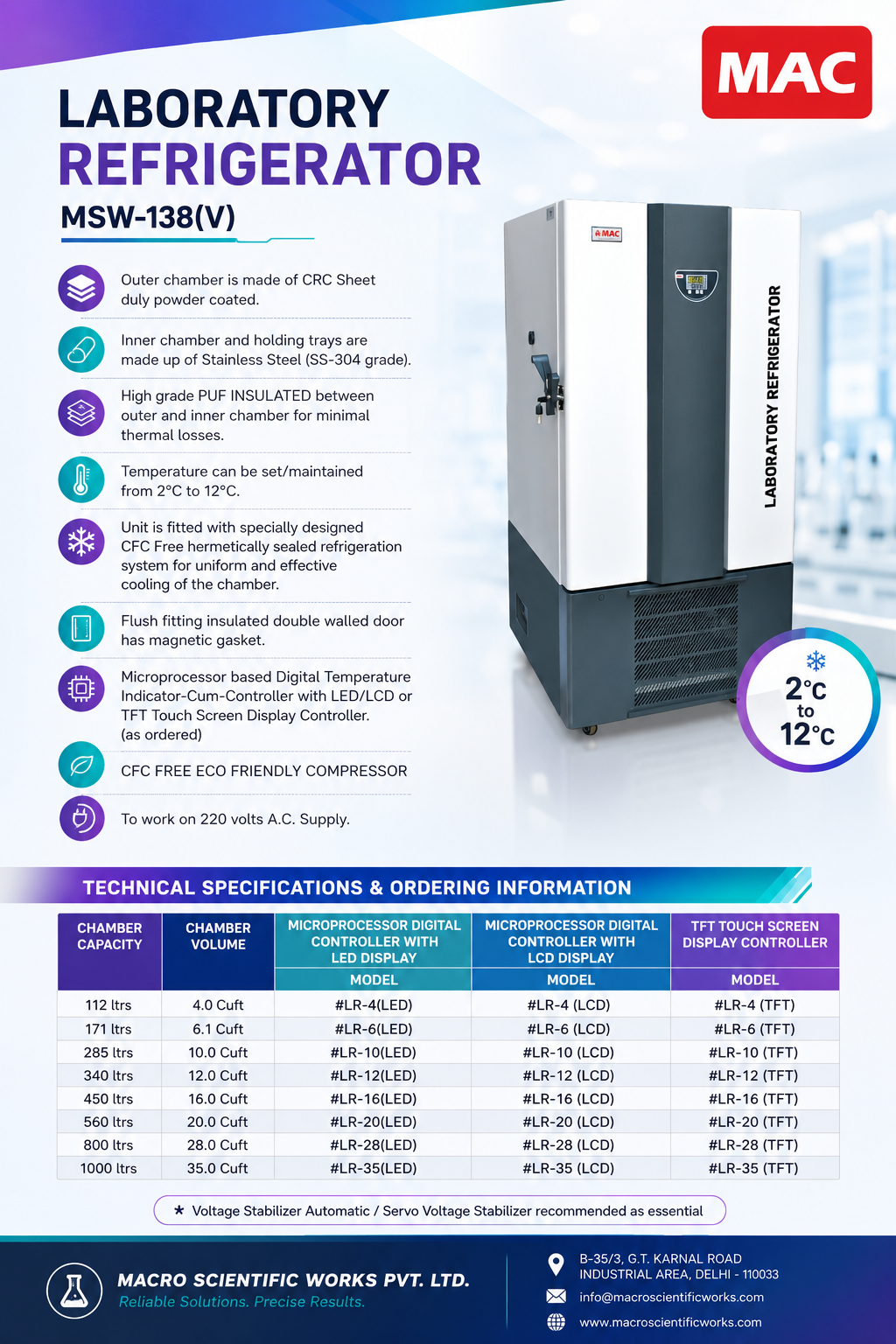

LABORATORY REFRIGERATOR “MAC” MSW-138

This is a small description

FEATURES

Outer chamber is made of CRC Sheet duly powder coated.
Inner chamber and holding trays are made up of Stainless Steel (SS-304 grade).
High grade PUF INSULATED between outer and inner chamber for minimal thermal losses.
Temperature can be set/maintained from 20C to 80C.
Unit is fitted with specially designed CFC Free hermetically sealed refrigeration system for uniform and effective cooling of the chamber.
Flush fitting insulated double walled door has magnetic gasket.
Microprocessor based Digital Temperature Indicator-Cum-Controller with LED/LCD/TFT touchLRreen display controller (as ordered)
CFC FREE ECO FRIENDLY COMPRESSOR.
To work on 220 volts A.C. Supply.

Technical Specifications & Ordering Informations
	MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY
Model	Display Type	Chamber Capacity	Chamber Volume
#LR-4(LED)	LED	112 ltrs.	4.0 Cuft
#LR-6(LED)	LED	171 ltrs.	6.1 Cuft
#LR-10(LED)	LED	285 ltrs.	10.0 Cuft
#LR-12(LED)	LED	340 ltrs.	12.0 Cuft
#LR-16(LED)	LED	450 ltrs.	16.0 Cuft
#LR-20(LED)	LED	560 ltrs.	20.0 Cuft
#LR-28(LED)	LED	800 ltrs.	28.0 Cuft
#LR-35(LED)	LED	1000 ltrs.	35.0 Cuft
	MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
Model	Display Type	Chamber Capacity	Chamber Volume
#LR-4(LCD)	LCD	112 ltrs.	4.0 Cuft
#LR-6(LCD)	LCD	171 ltrs.	6.1 Cuft
#LR-10(LCD)	LCD	285 ltrs.	10.0 Cuft
#LR-12(LCD)	LCD	340 ltrs.	12.0 Cuft
#LR-16(LCD)	LCD	450 ltrs.	16.0 Cuft
#LR-20(LCD)	LCD	560 ltrs.	20.0 Cuft
#LR-28(LCD)	LCD	800 ltrs.	28.0 Cuft
#LR-35(LCD)	LCD	1000 ltrs.	35.0 Cuft
	TFT TOUCH LRREEN DISPLAY CONTROLLER
Model	Display Type	Chamber Capacity	Chamber Volume
#LR-4(TFT)	TFT	112 ltrs.	4.0 Cuft
#LR-6(TFT)	TFT	171 ltrs.	6.1 Cuft
#LR-10(TFT)	TFT	285 ltrs.	10.0 Cuft
#LR-12(TFT)	TFT	340 ltrs.	12.0 Cuft
#LR-16(TFT)	TFT	450 ltrs.	16.0 Cuft
#LR-20(TFT)	TFT	560 ltrs.	20.0 Cuft
#LR-28(TFT)	TFT	800 ltrs.	28.0 Cuft
#LR-35(TFT)	TFT	1000 ltrs.	35.0 Cuft
