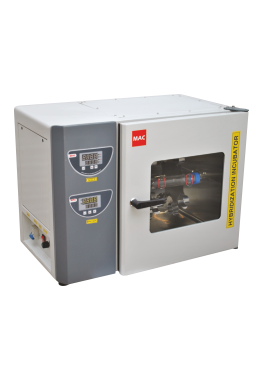

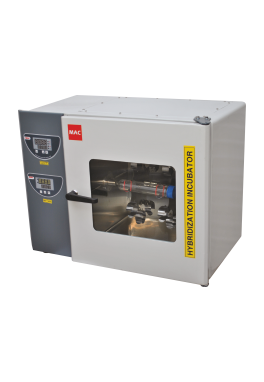

HYBRIDIZATION INCUBATOR “MAC” MSW-219
Designed to maintain precise temperature and humidity control. Provide an ideal environment for nucleic acid and protein hybridizations. Ensure sample-to-sample uniformity, reduce sample preparation time, and eliminate the need for water baths and heat sealers.
Application
- In every-day laboratory use “MAC” Hybridization Incubator is successfully employed as an ideal appliance for exact hybridizations of DNA and RNA probes with nucleic acid on filter paper (Southern / Northern Blots) and for incubations of protein blots with antibodies (Western Blots).
Ideally Suited for Special Cases
- MAC Hybridization Incubator is a specialist for individual cases. The small quantity of hybridization liquid that is required enables the user to work with high concentrations of probes or antibodies.
- Other applications are also possible. Instead of the rotating rack, the Incubator’s interior can be equipped with up to three (Optional) non-tilt and pull-out trays (accessories).
- The rotating rack to accept the hybridization vessels is driven by a geared motor via a sliding clutch. It is easily removable autoclavable and can be loaded outside the incubator.
Specifications and Features
- The ventilator ensures optimum temperature distribution throughout the cabinet interior.
- Electronic monitoring of the temperature controller triggers a visual alarm in case of fault, i.e. if the set process is exceeded by set value. The heating is switched off, the cause of the fault is shown on the LED display.
- High resolutions of the detections and even results due to the constancy of rotations.
- Soft-touch keys with clear symbols. Protection against unintended alterations by two-finger-operation.
- Clear view of the interior cabinet through a large thick glass window.
- The interior parts of the unit, such as cabinet walls, air baffle plate, interior door flame, rotating rack and the removable drip tray under the rotating rack are made of stainless steel (SS-304), the robust housing is made of CRC sheet duly powder coated.
Technical Specifications & Ordering Informations
- Temperature Control : Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED Display for Set Value (SV) & Process Value (PV)
- Temperature Constancy : ± 0.5°C
- Temperature Setting and Display : Digital -LED in 0.1°C increments
- Rotations of the rotating rack : 10 - 20 rpm
- Electrical Connection : 230V /50 .... 60 Hz/0.55 KW
| Technical Specifications & Ordering Informations | |
| Model | Temperature Range |
|---|---|
| #HI-219(HT) | From 5˚C above ambient to 90˚C |
| #HI-219(HC) | From 5˚C above to 90˚C (Refrigerated Model) |
OPTIONS
- Hybridization Bottle 60x200 (Set of 6 tubes).
- Additional Carrier for Bottles.
- Mini Rocker Platform at base.
