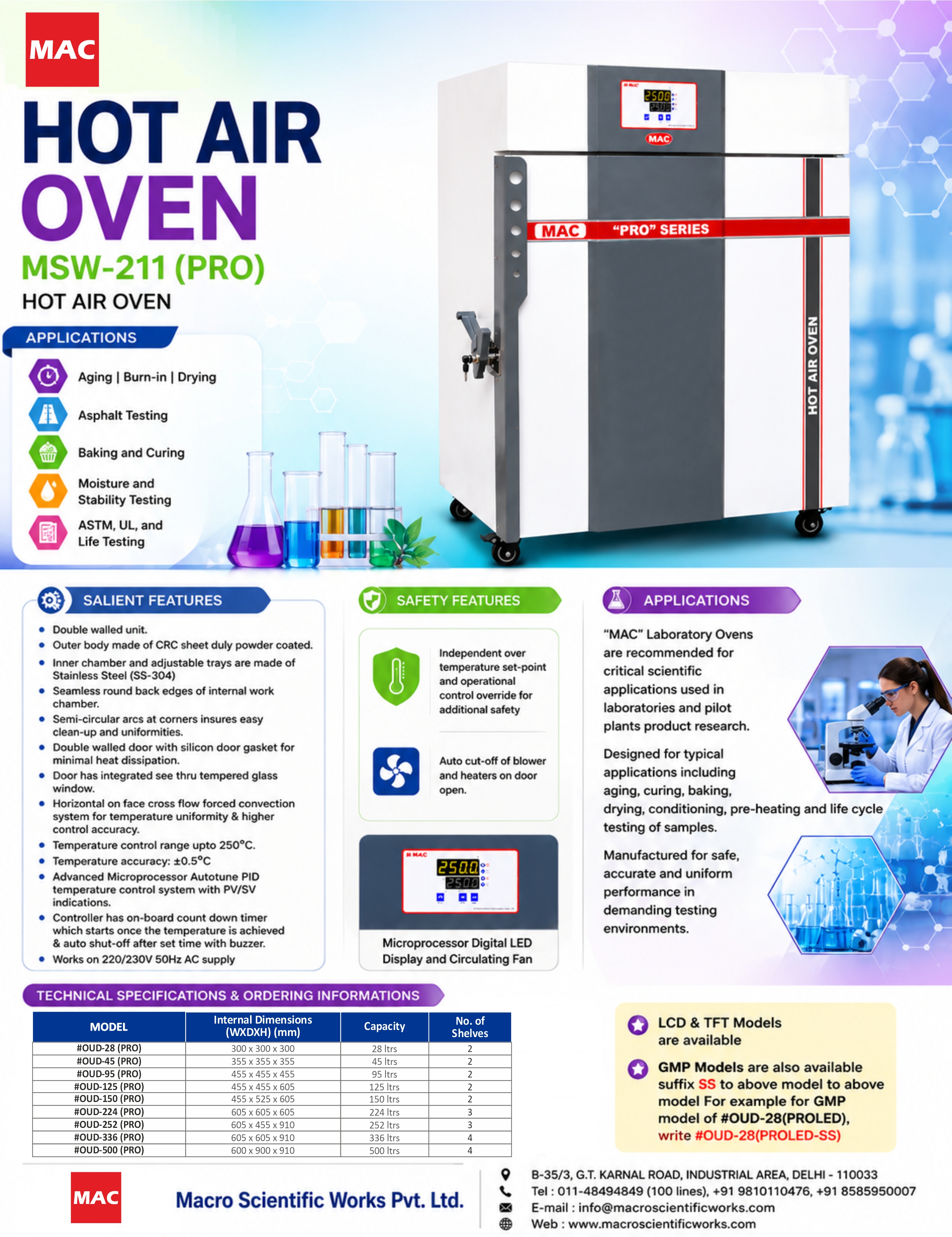

HOT AIR OVEN UNIVERSAL “MAC” MSW-211(PRO)

Forced convection ovens with controlled temperature upto 250°C through Microprocessor LED Digital Temperature Controller with Auto Timer & Alarms.

Features

  • Designed for critical laboratory applications for controlled temperature range up to 250°C OR 300°C with an accuracy of ± 0.5°C.
  • Integrated built-in see-thru toughened glass window in the double-walled door.
  • Forced convection model accounts for temperature uniformity and higher control accuracy.
  • Auto cut-off of blower and heaters on door open position.
  • Seamless rounded back edges of internal work chamber and semicircular arcs at corners ensures easy clean-up and uniformities.
  • Temperature Range : Upto 250˚C OR 300˚C
  • Temperature Accuracy : ± 0.5˚C
  • Microprocessor Based Autotune PID temperature controller for PV/SV indication, timer, and cycle end alarm.
  • Temperature Controller : Microprocessor Based Digital Temperature Indicator-Cum-Controller with LED OR LCD Display OR TFT Touch Screen Display Controller (Option).
  • Inner chamber and adjustable trays are made of Stainless Steel (SS-304 grade).
  • Outer body made of CRC Sheet duly powder coated.
  • Horizontal on face cross-flow air circulation accounts for tighter uniformities and accuracy.
  • Specially designed silicone door gaskets accounts for minimal heat dissipation and leakages thus accounts in electrical energy servings.
  • To work on 220/230V AV, 50/60 Hz supply.

Note

GMP Models are also available, suffix SS to above model for ex. For GMP model of #HAOM-28 please write #HAOM-28(SS)

Technical Specifications & Ordering Informations
MICROPROCESSOR DIGITAL CONTROLLER WITH LED DISPLAY
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)CapacityHeat LoadNo of shelves
#HAOM-28(LED)LED300x300x30028 ltrs.0.75 KW2
#HAOM-45(LED)LED355x355x35545 ltrs.0.75 KW2
#HAOM-95(LED)LED455x455x45595 ltrs.1.50 KW2
#HAOM-125(LED)LED455x455x605125 ltrs.1.50 KW2
#HAOM-224(LED)LED605x605x605224 ltrs.2.25 KW2
#HAOM-252(LED)LED605x455x910252 ltrs.2.25 KW3
#HAOM-336(LED)LED605x605x910336 ltrs.2.25 KW3
#HAOM-500(LED)LED600x900x910500 ltrs.3.75 KW3
MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)CapacityHeat LoadNo of shelves
#HAOM-28(LCD)LCD300x300x30028 ltrs.0.75 KW2
#HAOM-45(LCD)LCD355x355x35545 ltrs.0.75 KW2
#HAOM-95(LCD)LCD455x455x45595 ltrs.1.50 KW2
#HAOM-125(LCD)LCD455x455x605125 ltrs.1.50 KW2
#HAOM-224(LCD)LCD605x605x605224 ltrs.2.25 KW2
#HAOM-252(LCD)LCD605x455x910252 ltrs.2.25 KW3
#HAOM-336(LCD)LCD605x605x910336 ltrs.2.25 KW3
#HAOM-500(LCD)LCD600x900x910500 ltrs.3.75 KW3
TFT TOUCH SCREEN DISPLAY CONTROLLER
ModelDisplay TypeInternal Dimension (WxDxH) (in mm)CapacityHeat LoadNo of shelves
#HAOM-28(TFT)TFT300x300x30028 ltrs.0.75 KW2
#HAOM-45(TFT)TFT355x355x35545 ltrs.0.75 KW2
#HAOM-95(TFT)TFT455x455x45595 ltrs.1.50 KW2
#HAOM-125(TFT)TFT455x455x605125 ltrs.1.50 KW2
#HAOM-224(TFT)TFT605x605x605224 ltrs.2.25 KW2
#HAOM-252(TFT)TFT605x455x910252 ltrs.2.25 KW3
#HAOM-336(TFT)TFT605x605x910336 ltrs.2.25 KW3
#HAOM-500(TFT)TFT600x900x910500 ltrs.3.75 KW3
