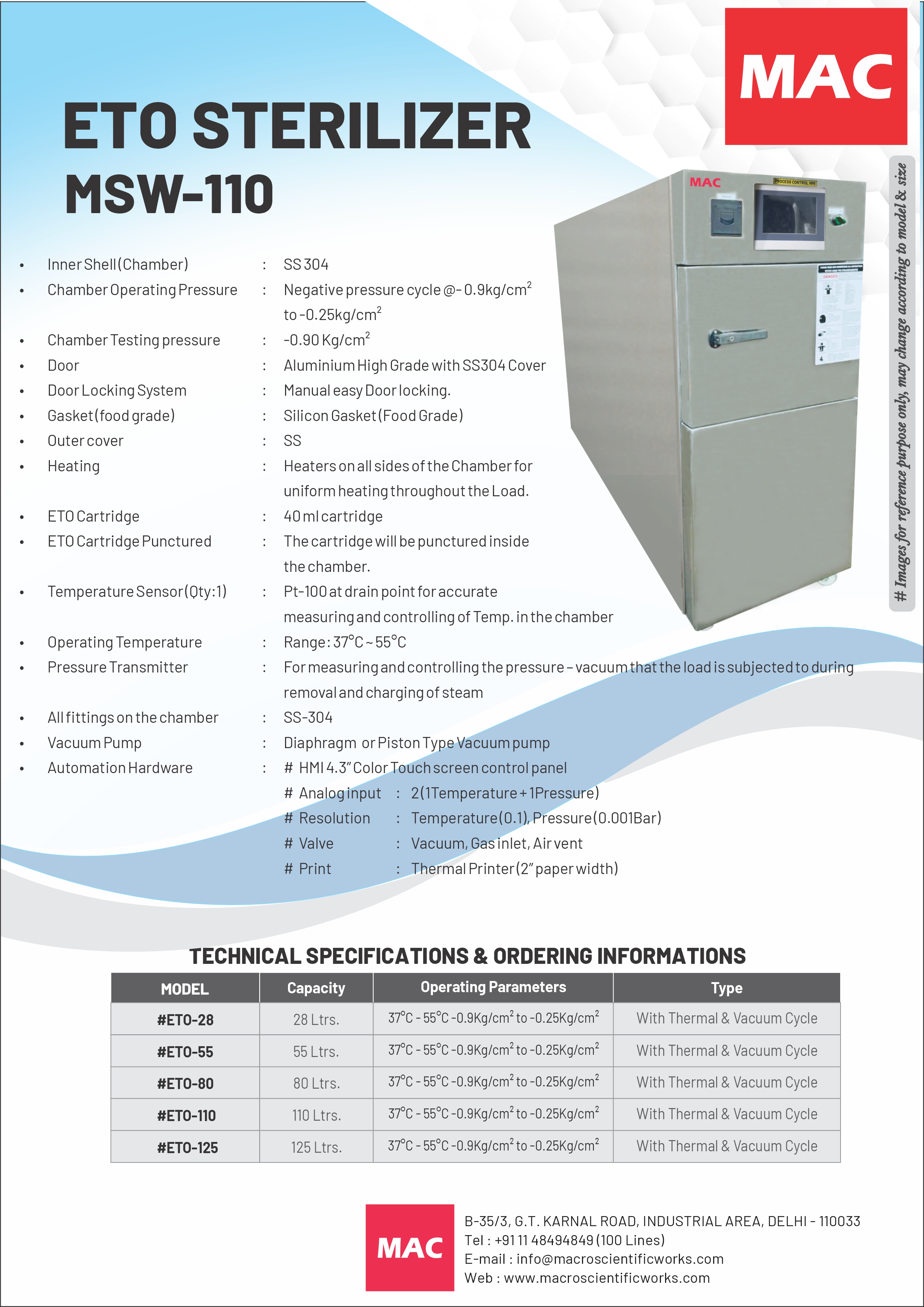

ETHYLENE OXIDE STERILIZER (ETO STERILIZER) “MAC” MSW-110
This is a small description
Description
- Inner Shell (Chamber) : SS 304
- Chamber Operating Pressure : Negative Cycle @-0.9kg/cm2 to -0.25kg/cm2
- Chamber Testing Pressure : -0.90kg/cm2
- Door : Aluminium High Grade with SS-304 cover
- Door Locking System : manual easy Door Locking.
- Gasket (food grade) : Silicon Gasket (Food Grade)
- Outer Cover : SS
- Heating : Heater on all sides of the chamber for uniform heating throughout the load.
- ETO Cartridge : 40 ml Cartridge
- ETO Cartridge Punctured : The cartridge will be punctured inside the chamber.
- Temperature Sensor(Qty-1) : PT-100 at drain point for accurate measuring and controlling of Temperature in the chamber
- Operating Temperature : Range- 37oC ̴̴ 55oC
- Pressure Transmitter : For measuring and controlling the pressure – vacuum that the load is subjected to during removal and charging of steam
- All fittings on the chamber : SS – 304
- Internal Dimension : 300 x 300 x 900mm
- Vacuum pump : Diaphragm or Piston type vacuum pump
Automation Hardware
- # HMI 4.3” color touch screen control panel
- # Analog input : 2 (1 Temperature + 1 Pressure)
- # Resolution : Temperature (0.1), Pressure (0.001 Bar)
- # Valve : Vacuum, Gas inlet, Air vent
- # Print : Thermal Printer (2” paper width)
| Technical Specifications & Ordering Informations | |||||
| MODEL | #ETO-28 | #ETO-55 | #ETO-70 | #ETO-110 | #ETO-125 |
|---|---|---|---|---|---|
| CAPACITY | 28 | 55 | 70 | 110 | 125 |
| OPERATING PARAMETERS | 37°C - 55°C -0.9Kg/cm² to -0.25Kg/cm² | 37°C - 55°C -0.9Kg/cm² to -0.25Kg/cm² | 37°C - 55°C -0.9Kg/cm² to -0.25Kg/cm² | 37°C - 55°C -0.9Kg/cm² to -0.25Kg/cm² | 37°C - 55°C -0.9Kg/cm² to -0.25Kg/cm² |
| TYPE | With Thermal & Vacuum Cycle | With Thermal & Vacuum Cycle | With Thermal & Vacuum Cycle | With Thermal & Vacuum Cycle | With Thermal & Vacuum Cycle |
