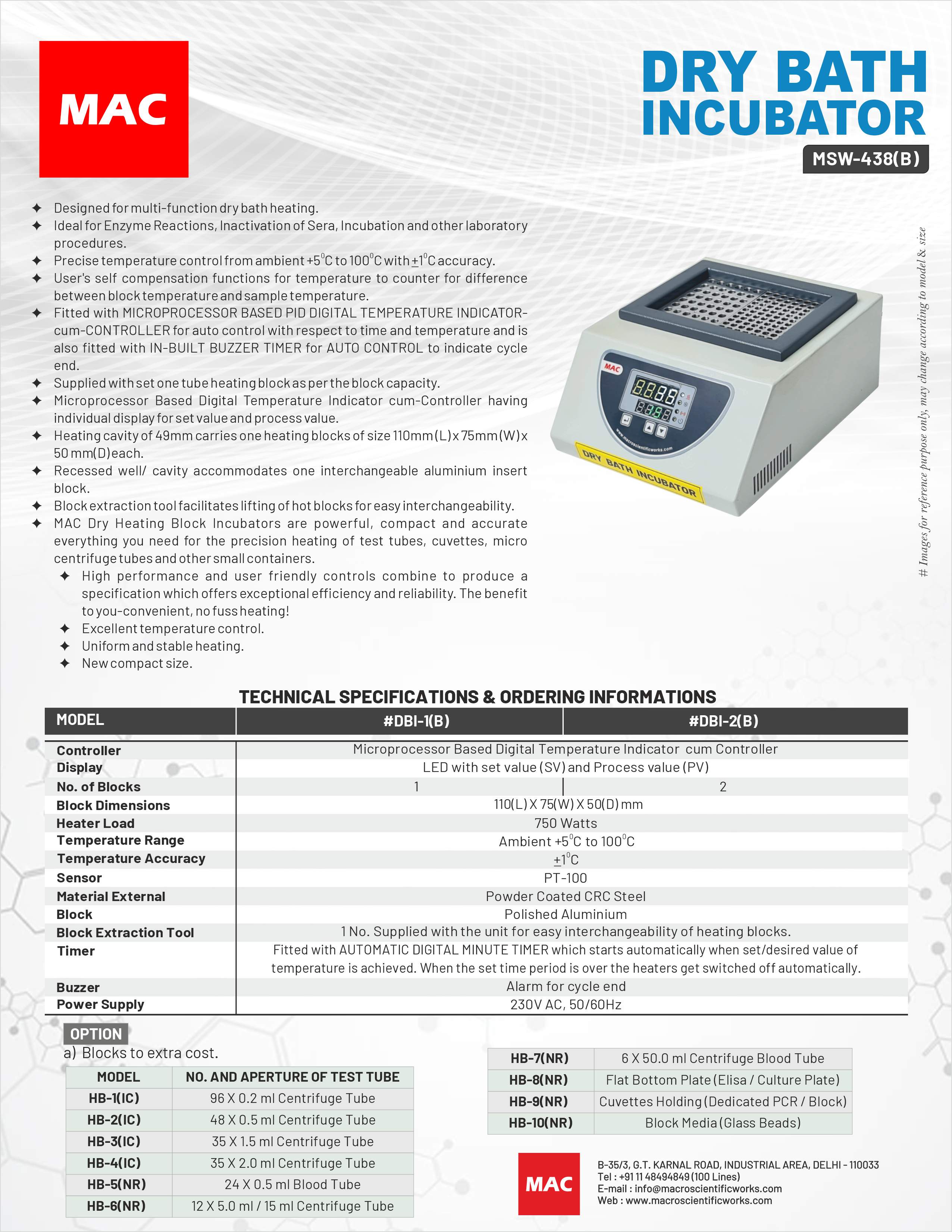

DRY BATH INCUBATOR (HEATING BLOCK INCUBATOR) “MAC” MSW-438(B)
This is a small description
Description
- Designed for multi-function dry bath heating.
- Ideal for Enzyme Reactions, Inactivation of Sera, Incubation and other laboratory procedures.
- Precise temperature control from ambient +50C to 1000C with +10C accuracy.
- User’s self compensation functions for temperature to counter for difference between block temperature and sample temperature.
- Fitted with MICROPROCESSOR BASED PID DIGITIAL TEMPERATURE INDICATOR-cum-CONTROLLER for auto control with respect to time and temperature and is also fitted with IN-BUILT BUZER TIMER for AUTO CONTROL to indicate cycle end.
- Supplied with set one tube heating block as per the block capacity.
- Microprocessor Based Digital Temperature Indicator cum-Controller having individual display for set value and process value.
- Heating cavity of 49mm carries one heating blocks of size 110mm (L) x 75mm (W) x 50mm (D) each.
- Recessed well/ cavity accommodates one interchangeable aluminium insert block.
- Block extraction tool facilitates lifting of hot blocks for easy interchangeability.
- MAC Dry Heating Block Incubators are powerful, compact and accurate everything you need for the precision heating of test tubes, cuvettes, micro centrifuge tubes and other small containers.
- High performance and user friendly controls combine to produce a specification which offers exceptional efficiency and reliability. The benefit to you-convenient, no fuss heating!
- Excellent temperature control.
- Uniform and stable heating.
- New compact size.
| Technical Specifications & Ordering Informations | ||
| Model | #DBI-1(B) | #DBI-2(B) |
|---|---|---|
| Controller | Microprocessor Based Digital Temperature Indicator cum-Controller with in-built timer | |
| Display | LED with set value (SV) and Process Value (PV) | |
| Block Dimension (LxWxD) | 110mm (L) x 75mm (W) x 50mm (D) | |
| No. of Blocks | 1 | 2 |
| Heater Load | 750 Watts | |
| Temperature Range | Ambient +5°C to 100°C | |
| Temperature Accuracy | ±1°C | |
| Sensor | PT-100 | |
| Material External | Powder Coated CRC Steel | |
| Block | Polished Aluminium | |
| Block Extraction Tool | 1 No. Supplied with the unit for easy interchangeability of heating blocks | |
| Timer (SAD) | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically | |
| Buzzer | Alarm for cycle end | |
| Power Supply | 230V AC, 50/60 Hz | |
Options
- Blocks to cost extra {#DBI-1(B) & #DBI-2(B)}.
- HB-1(IC) : 96 X 0.2 ml Centrifuge Tube
- HB-2(IC) : 54 X 0.5 ml Centrifuge Tube
- HB-3(IC) : 35 X 1.5 ml Centrifuge Tube
- HB-4(IC) : 5 X 2.0 ml Centrifuge Tube
- HB-5(NR) : 24 X 5.0 ml Blood Tube
- HB-6(NR) : 12 X 5.0/15.0 ml Centrifuge Tube
- HB-7(NR) : 50 X 6.0 ml Centrifuge Blood Tube
- HB-8(NR) : Flat Bottom Tube (Elisa / Culture Plate)
- HB-9(NR) : Cuvettes Holding (Dedicated PCR / Block)
- HB-10(NR) : Block Media (Glass Beads)
