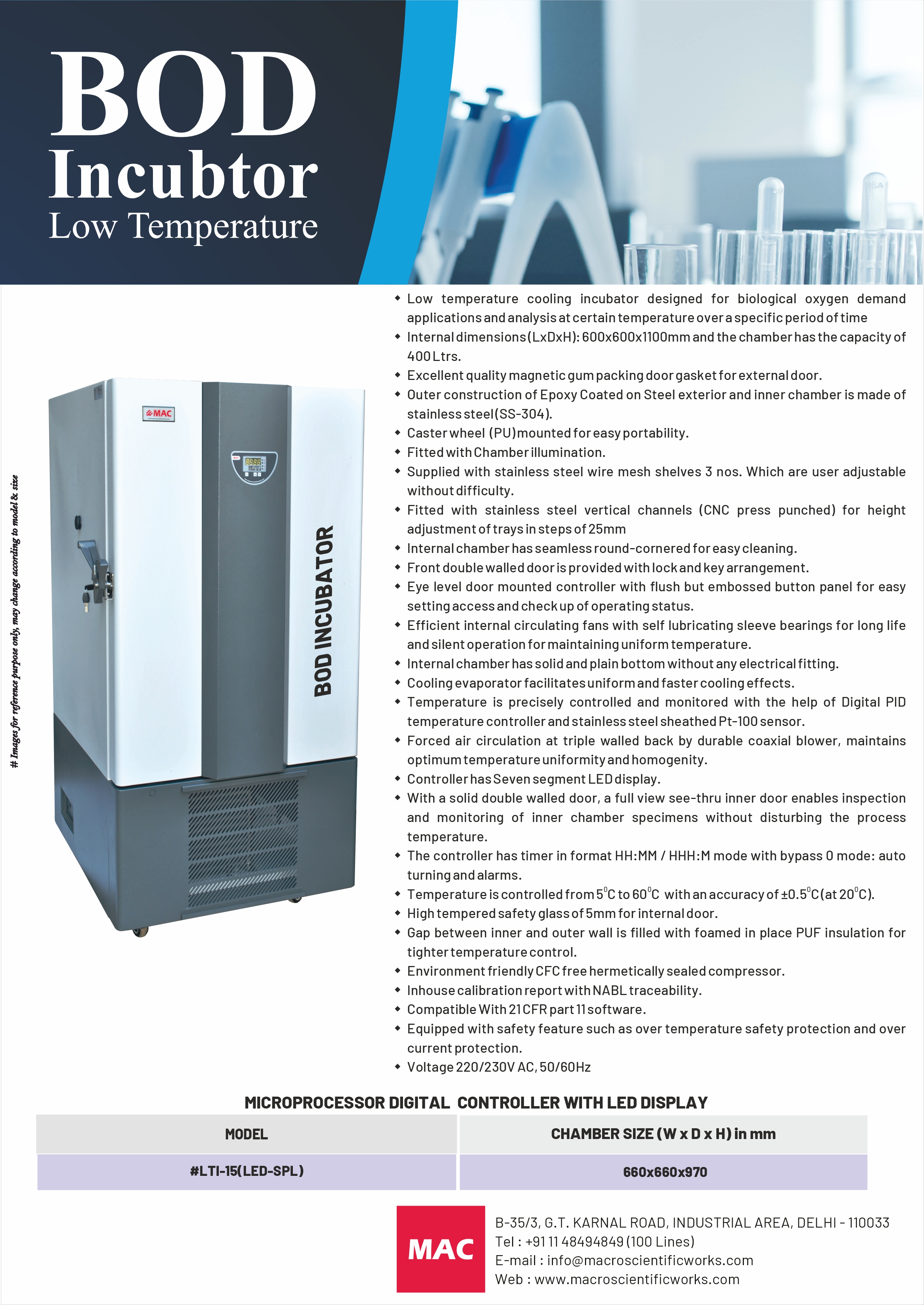

Description

• Low temperature cooling incubator designed for biological oxygen demand applications and analysis at certain temperature over a specific period of time
• Internal dimensions (LxDxH): 600x600x1100mm and the chamber has the capacity of 400 Ltrs.
• Excellent quality magnetic gum packing door gasket for external door.
• Outer construction of Epoxy Coated on Steel exterior and inner chamber is made of stainless steel (SS-304).
• Caster wheel (PU) mounted for easy portability.
• Fitted with Chamber illumination.
• Supplied with stainless steel wire mesh shelves 3 nos. Which are user adjustable without difficulty.
• Fitted with stainless steel vertical channels (CNC press punched) for height adjustment of trays in steps of 25mm.
• Internal chamber has seamless round-cornered for easy cleaning.
• Front double walled door is provided with lock and key arrangement.
• Eye level door mounted controller with flush but embossed button panel for easy setting access and check up of operating status.
• Efficient internal circulating fans with self lubricating sleeve bearings for long life and silent operation for maintaining uniform temperature.
• Internal chamber has solid and plain bottom without any electrical fitting.
• Cooling evaporator facilitates uniform and faster cooling effects.
• Temperature is precisely controlled and monitored with the help of Digital PID temperature controller and stainless steel sheathed Pt-100 sensor.
• Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogenity.
• Controller has Seven segment LED display.
• With a solid double walled door, a full view see-thru inner door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
• The controller has timer in format HH:MM / HHH:M mode with bypass 0 mode: auto turning and alarms.
• Temperature is controlled from 5°C to 60°C with an accuracy of ±0.5°C (at 20°C).
• High tempered safety glass of 5mm for internal door.
• Gap between inner and outer wall is filled with foamed in place PUF insulation for tighter temperature control.
• Environment friendly CFC free hermetically sealed compressor.
• Inhouse calibration report with NABL traceability.
• Compatible With 21 CFR part 11 software.
• Equipped with safety feature such as over temperature safety protection and over current protection.
• Voltage 220/230V AC, 50/60Hz.
