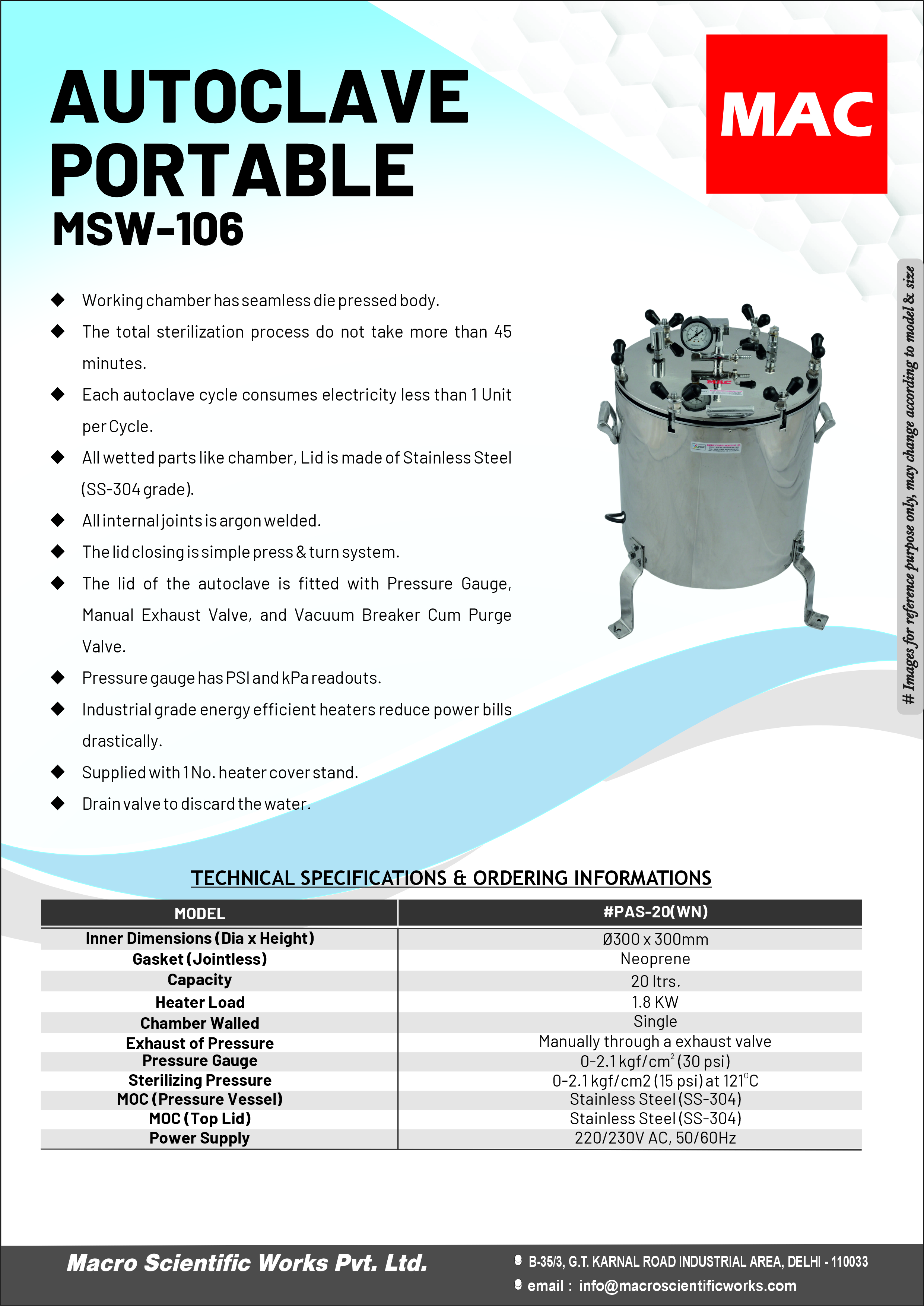

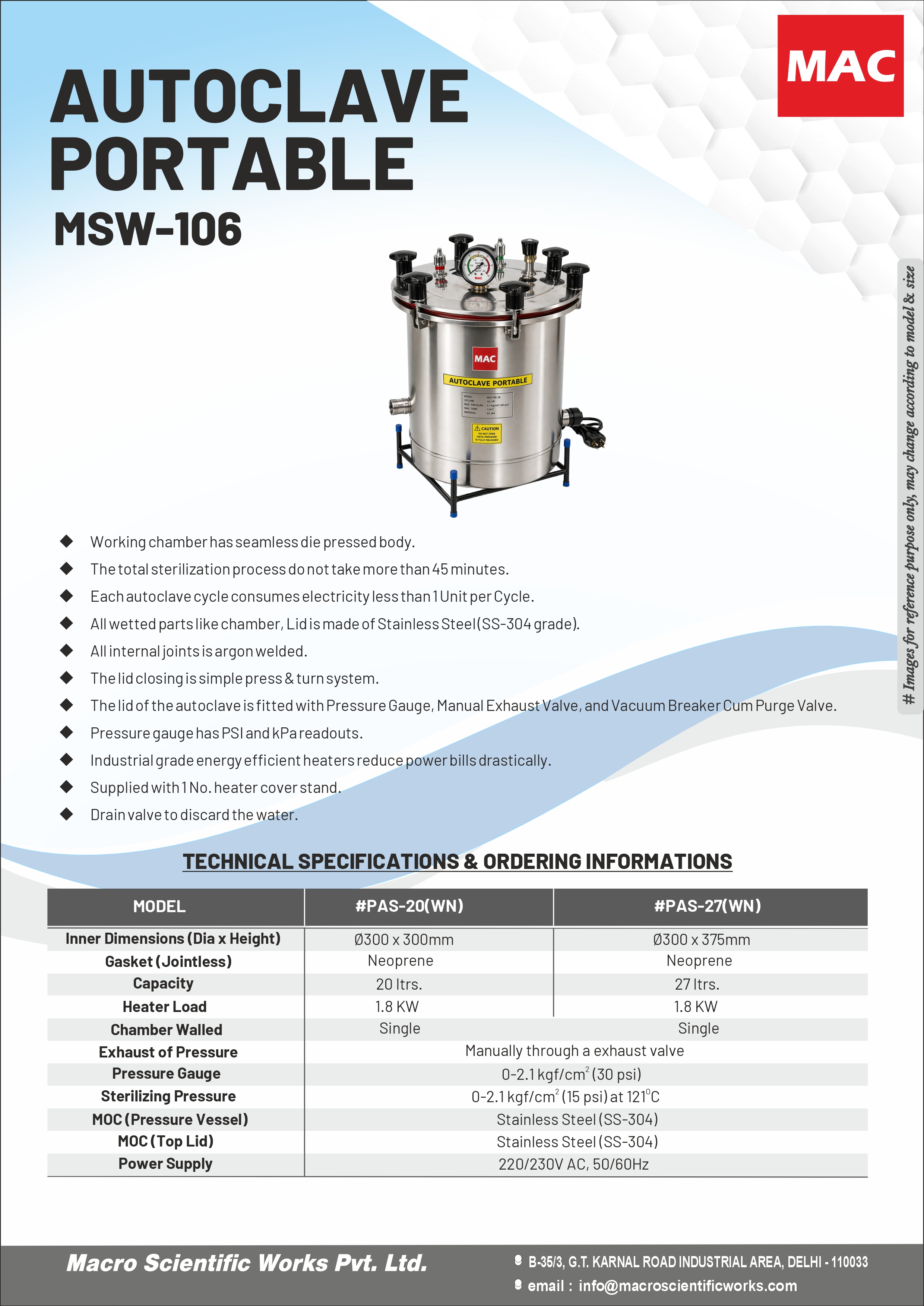

AUTOCLAVE PORTABLE (MANUAL ANALOGUE) “MAC” MSW-106
Standard single-walled Stainless Steel analog model for general sterilizing requirements fully with safety valve, exhaust valve, and pressure gauge
Features
- Our portable Autoclaves are most ideal for doctors, nursing homes, laboratories, dentists, etc.
- Most ideal for general laboratory requirement where samples in small batches are required to be sterilized.
- Hydraulically tested up to 40psi for user safety.
- Spring-loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
- Economy at your fingertips with low power consumptions.
- A seamless (joint less) body for single-walled units provides a sturdy and safe operation for the user.
- Low sterilization process time accounts for a higher number of batches accounting for the economy and faster results.
- Body, lid & heater cover made of Single-Walled Stainless Steel (SS-304).
- Simple and easy “Press & turn” system of the closing lid for single-walled units.
- Lid is fitted with Pressure Gauge, Safety Valve, Manual Exhaust Valve.
- Vacuum breaker-cum-purge valve works as a safety device.
- Moulded neoprene rubber gasket.
- Heater cover stand made of stainless steel (SS-304)
- Industrial grade energy efficient heaters reduce power bills drastically
| Technical Specifications & Ordering Informations | |
| Model | #PAS-20(SS) |
|---|---|
| Inner Dimensions (Dia x Height) | 300x350mm |
| Gasket (Jointless) | Neoprene |
| Capacity | 20 Ltrs |
| Heater Load | 2.0 KW |
| Chamber Wall | Single |
| Exhaust of Pressure | Manually through a exhaust valve |
| Pressure Gauge | 0-2.1 kgf/cm²(30 psi) |
| Sterilizing Pressure | 0-2.1 kgf/cm² (15 psi) at 121°C |
| MOC (Pressure Vessel) | Stainless Steel (SS-304) |
| MOC (Top Lid) | Stainless Steel (SS-304) |
| Power Supply | 220/230V AC, 50/60Hz |
